Durable components for viscous and semi-viscous media
Super Quali Cast manufactures investment castings for gear pumps and custom gear pump components in a wide range of low-carbon and stainless-steel alloys, with material selection tailored to application and design requirements. Our manufacturing capabilities support demanding industry and customer specifications, with quality systems backed by ISO 9001 certification. We also hold LR-Marine and NORSOK M-650 certifications and supply cast components to customers across the US, EU, Middle East, and other international markets.

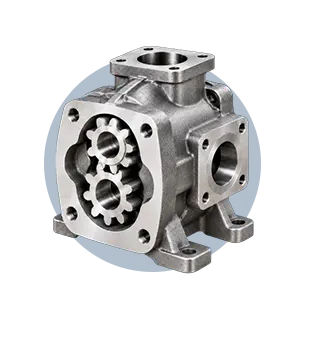

Gear Pump Casting Components We Manufacture
We manufacture precision-cast gear pump components for hydraulic and mechanical assemblies, including casings, covers, bearing housings, wear plates, adapters, and other pump cast components.
Primary components
- Casings
- Body plates
- Cover plates
- Wear plates
- Suction cover
- Motor adapter
- Bearing housing
- Mechanical seal housing
- Stuffing box
Secondary components
- Couplings
- Bearing bracket
- Shaft sleeve
- Retainer ring
- Bushings
Technical Specifications of Gear Pump Castings
Our gear pump castings are available in a range of casting weights, wall thicknesses, dimensional tolerances, surface finishes, heat treatments, and surface-treatment options.
| Particulars | Details |
|---|---|
| Casting Process | Precision investment casting, Lost-wax casting |
| Material Grades | CF8, CF8M, CF3, CF3M, CD3MN, WCB, WCC |
| Industry Standards | API 676, API 682, ANSI/HI 3.1–3.5, API 20A |
| Shell Building Media | Ceramic, Stucco |
| Casting Weight Range | 0.10–150 kg |
| Wall Thickness | 1–4+ mm |
| Casting Tolerances | DCTG 5–6, GCTG 3–5 |
| Surface Roughness | N9 (Ra 6.3 μm)–N7 (Ra 1.6 μm) |
| Heat Treatment Options | Normalizing, Quenching, Tempering, Solution annealing, Hardening, Aging |
| Surface Treatment Options | Shot blasting, Pickling, Passivation, Electropolishing, Powder coating, Buffing |
Manufacturing Investment Castings for Gear Pumps — Our Process
Our precision investment casting process for gear pump components is designed to deliver consistent dimensional accuracy, material integrity, surface quality, and near-net-shape components from wax pattern production through final inspection.
- Wax pattern: Injecting liquid wax into engineered moulds to create repeatable, accurate wax components for lost-wax casting, then attaching them to a sprue to form a tree.
- Shell formation: Dipping the wax pattern tree into a ceramic slurry and applying successive layers of fine stucco to build an even, robust ceramic shell. The coating process is repeated as required to achieve the desired shell thickness and strength.
- Metal pouring: Pouring molten alloy into preheated ceramic shells under controlled pouring conditions to achieve consistent filling and solidification.
- Heat treatment: Subjecting knocked-out and fettled components to controlled heat-treatment cycles to achieve the required mechanical and metallurgical properties.
- CNC machining: Machining critical and mating surfaces through drilling, reaming, milling, and other secondary operations to produce CNC machined castings with the specified dimensional accuracy and surface finish.
- Final inspection: Hardness testing, impact testing, coordinate measurement, spectrometric analysis, X-ray testing, UV inspection, dye-penetrant testing, and other non-destructive testing methods to verify product integrity and quality.
Why Choose Super Quali Cast for Gear Pump Castings
Super Quali Cast is an experienced investment casting manufacturer and supplier of custom pump castings, providing gear pump components to OEMs and tier-1 suppliers in India and international markets.
Rapid prototyping
Quick 3D prints and machined one-offs to validate preliminary design and enable quick iteration, reducing time-to-production.
DFM
Optimizing design for at-scale production, reducing complexity and ensuring manufacturability.
Scalable production
Multiple furnaces, pouring stations, and semi-automated equipment supporting high-volume production of investment-cast components.
Low rejection rates
A controlled production process designed to minimize defects, improve consistency, and reduce overall manufacturing costs.
Turnkey solution
End-to-end capability that covers design to production, custom branding, packaging, and export, considerably reducing supply chain complexities.
Global supply
We supply gear pump castings to OEMs and tier-1 suppliers across India, North America, Europe, the Middle East, Asia-Pacific, and other international markets.
Sustainable manufacturing
Solar power plant that meets up to 60% of our energy requirements and green manufacturing practices that reduce waste and emissions while maintaining product quality.
Gear Pump Applications Across Industries
Gear pumps are commonly used for viscous fluid handling, where consistent, low-pulsation flow is required for viscous and semi-viscous fluids, including applications involving elevated pressures. They are widely used across the following industries.
Paints & Inks
Gear pumps are instrumental in moving inks and paints, which are high-viscosity substances.
Oil & Gas
Gear pumps are used for transferring and metering various petroleum-based and viscous fluids in oil and gas applications.
Petroleum & Chemicals
Gear pumps are used to transfer refined petroleum products, chemicals, oils, and other viscous fluids.
Food & Beverages
Gear pumps are used for handling viscous food products such as peanut butter, jams, jellies, syrups, and other semi-viscous products.
Super Quali Cast: Investment Casting Manufacturer for Gear Pump Components
- Experience:
40+ years of experience as an investment casting manufacturer in India. - Focused Manufacturing:
Producing custom gear pump castings and industrial pump components for OEMs and tier-1 suppliers. - End-to-End Capabilities:
From prototyping to production in the same facility.
- Production Scale:
Annual production capacity of approximately 36,000 metric tons. - Compliance:
ISO 9001, 14001, 45001, API 20A, NORSOK M-650, PED 2014/68/EU, and AD 2000 Merkblatt W0.
Discuss Your Gear Pump Casting Requirements
Share your technical drawings, material requirements, expected volumes, and supply destination. Our team will review your requirements and provide a tailored quotation, production details, and applicable Incoterms.
Frequently Asked Questions
Can you manufacture custom investment castings for gear pumps?
Yes. We manufacture custom investment-cast gear pump components and pump castings based on customer drawings, specifications, material requirements, and production volumes. Where applicable, we can also support proprietary alloy specifications, machining, branding, packaging, and other customer-specific requirements.
Will sand casting be better suited to my needs?
Sand casting can be better suited for larger components, particularly where casting weight, geometry, production volume, and tooling economics make it more practical. Investment casting is often preferable for smaller or more complex components where dimensional accuracy, surface finish, and near-net-shape production are important. Share your component size, geometry, material, and annual volume with us, and we can help determine the more suitable process.
What materials are available for gear pump castings?
We manufacture gear pump castings in a range of low-carbon steel and stainless-steel casting grades, including CF8, CF8M, CF3, CF3M, CD3MN, WCB, and WCC, subject to component design, application, and customer specifications.
What casting weight range can you manufacture?
Our investment casting capability covers component weights from approximately 0.10 kg to 150 kg, depending on component geometry, alloy, dimensional requirements, and production specifications.
What is your MOQ for investment castings for gear pumps?
Our MOQ for gear pump components depends on factors such as component design, material, tooling requirements, production volume, and delivery destination. Contact us with your requirements for a project-specific quotation.
Do you only deliver to the above-mentioned locations?
We regularly supply customers across India and international markets, including North America, Europe, the Middle East, and Asia-Pacific. If your destination is not listed above, contact us to confirm shipping availability and applicable delivery terms.
Do you only manufacture investment castings for gear pumps?
We manufacture investment castings for a wide range of pump and valve applications, including gear, centrifugal, lobe, and turbine pumps, as well as knife, gate, butterfly, cryogenic, and other valve components. Visit our main product pages to explore our broader casting capabilities.
