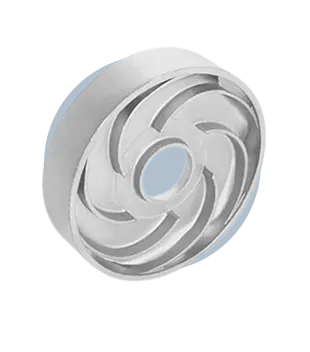

Precision, Corrosion-Resistant Components for Submersible Pumps
Super Quali Cast manufactures investment castings for submersible pumps from casings and diffusers to motor housings and wear rings. We produce our components in ISO 9001-certified foundries, and in line with API 610, API 20A, NORSOK M-650, and LR Marine standards. Additionally, our submersible pump components meet tolerance requirements set by VDG P690 and ISO 8062-3.
We are end-to-end manufacturers and suppliers of investment castings for submersible pumps, simplifying supply chain complexities. We produce, package, and supply pan-India and export to leading destinations across North America, Europe, the Middle East, and Asia-Pacific.
Components for Submersible Pumps
We produce precision-cast components for submersible pumps, engineered for reliable performance across a range of fluid-handling applications.
Primary components
- Impellers
- Diffusers
- Volutes
- Casings
- Suction cover
- Suction casing
- Motor housing
- Discharge casing
- NRVs (non-return valves)
- Motor adapter
- Bearing housing
- Mechanical seal housing
Secondary components
- Wear rings
- Shaft sleeve
- Retainer ring
- Bushings
Technical Specifications of Submersible Pump Castings
Key specifications for our submersible pump castings, including weight range, wall thickness, dimensional tolerances, surface finish, and heat-treatment options.
| Particulars | Details |
|---|---|
| Casting Process | Investment casting, Lost-wax casting |
| Material Grades | CF8, CF8M, CF3, CF3M, CD3MN, WCB, WCC |
| Industry Standards | API 610, API 20A |
| Shell Building Media | Ceramic, Stucco |
| Casting Weight Range | 0.10–150 kg |
| Wall Thickness | 1–4+ mm |
| Casting Tolerances | DCTG 5–6, GCTG 3–5 |
| Surface Roughness | N9 (Ra 6.3 μm)–N7 (Ra 1.6 μm) |
| Heat Treatment Options | Normalizing, Quenching, Tempering, Solution annealing, Hardening, Aging |
| Surface Treatment Options | Shot blasting, Pickling, Passivation, Electropolishing, Powder coating, Buffing |
Manufacturing Investment Castings for Submersible Pumps — Our Process
Our lost-wax casting process is engineered to deliver near-net-shape components with consistent quality across production runs.
- Wax pattern: Positive wax impressions made from precise molds to ensure repeatable accuracy across batches.
- Shell formation: Optimal ceramic shells made from up to eight coatings of ceramic slurry and stucco for favorable thickness.
- Component formation: Gradual introduction of molten alloys into the shell cavity and gradual cooling to form the required parts.
- Heat treatment: Placing knocked-out and fettled components in pre-heated furnaces to improve physical and metallurgical properties.
- CNC machining: Machining fettled parts to achieve the required surface finish and dimensional tolerances.
- Final inspection: Physical tests, non-destructive tests, and visual inspections to ensure product integrity and provide performance assurance.
Why Choose Us for Investment Castings for Submersible Pumps
Super Quali Cast serves leading OEMs and tier-1 suppliers in the US, EU, and India with a wide range of castings for submersible pumps. Key advantages include:
Rapid prototyping
Fast sample development and prototype production to validate design and accelerate product development.
DFM
Design optimization to improve manufacturability, simplify precision requirements, and support cost-effective production scaling.
Scalable production
Modern equipment, controlled processes, and trained personnel to shift to high-volume output to meet seasonal demands.
Low rejection rates
Controlled manufacturing processes and efficiency optimization that ensure internal rejection rates stay below 0.2%.
Turnkey solution
Comprehensive support across design, manufacturing, finishing, testing, packaging, and logistics. Support for third-party testing on request.
Global supply
We supply submersible pump castings across India and export to pump manufacturers in the US, Canada, the UK, the Netherlands, Germany, Luxembourg, Italy, Spain, Turkey, Romania, the UAE, South Korea, Australia, and New Zealand.
Sustainable manufacturing
Responsible production practices focused on resource efficiency, waste reduction, and environmental stewardship.
Submersible Pump Applications Across Industries
Submersible pumps are preferred in the following industries for submerged applications because they avoid suction-side cavitation issues and don’t require priming.
Oil & Gas
Electrical submersible pumps (multi-stage) raise crudes to the surface of the oil wells when reservoir pressure is too low for natural flow.
Industrial processing
Handling process water, cooling fluids, and effluent treatment flows across manufacturing sites.
Construction & Mining
Dewatering excavation tunnels, mines, and foundations, including water with sand particles.
Marine & Offshore
Bilge pumping, seawater handling, and drainage applications on ships and offshore rigs.
Wastewater & Sewage
Moving sewage from wet wells to lift stations, transferring return activated and waste activated sludge, and discharging the treated effluent.
About Super Quali Cast: Our Background & Capabilities
- Experience:
40-plus years of manufacturing investment castings in India - Focused Manufacturing:
Producing submersible pump castings for OEMs and tier-1 suppliers. - End-to-End Capabilities:
Multiple services on the same premises to optimize project agility.
- Production Scale:
Annual production of ~36,000 metric tons. - Compliance:
ISO 9001, 14001, 45001, API 20A, NORSOK M-650, PED 2014/68/EU, and AD 2000 Merkblatt W0.
Discuss Your Investment Casting Requirements for Submersible Pumps
Share your technical drawings, volume requirements, and supply destination, and our team will get back to you with a quote, batch details, and Incoterms at the earliest.
Frequently Asked Questions
Your castings for submersible pumps are for which submersible pump types?
We primarily manufacture investment castings for multi-stage submersible pumps, which are among the most requested configurations. However, we also produce investment castings for single-stage and positive displacement submersible pumps.
Do you assemble the investment castings for submersible pumps?
No, we do not assemble the investment castings for submersible pumps. We produce and supply them as-cast, roughly machined, or finely machined, as per requirement.
Can you customize your investment castings for submersible pumps?
Yes, we can customize investment-cast submersible pump components based on your proprietary design, specified alloy requirements, dimensional requirements, and branding needs.
What is the lead time for your investment castings for submersible pumps?
Our lead time for investment castings for submersible pumps is typically 30–45 days for the first batch. Subsequent batches take less time, subject to conditions.
What is the MOQ for your submersible pump castings?
Our MOQ for submersible pump castings depends on the components required, selected alloy, machining and customization requirements, and port of delivery. Please reach out to us for a tailored quote.
Do you only manufacture investment castings for submersible pumps?
No, Super Quali Cast manufactures investment castings for pumps, valves, defence and railway equipment, and general engineering components. Please check out our product pages for additional details.
