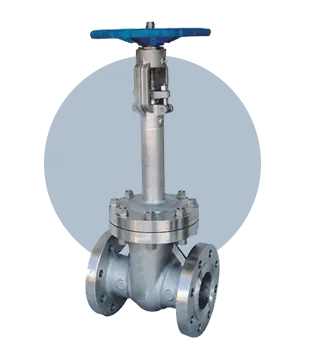

Valve castings built to resist brittleness and leakage at low temperatures.
At Super Quali Cast, we manufacture investment castings for cryogenic valves used in low-temperature, pressure-critical service for LNG, cryogenic gas handling, and temperature-sensitive process systems.
Our cryogenic valve castings are supplied to industrial valve manufacturers and OEMs producing valves for LNG, cryogenic gases, and temperature-sensitive process systems.
Using the lost-wax investment casting process, we provide consistent geometry, controlled wall thickness, and material options suited for cryogenic operating conditions.
Our Manufacturing Process of Cryogenic Valve Casting
We manufacture cryogenic valve castings using a controlled investment casting workflow, executed through the following stages:
Tooling & Wax Patterning
We produce accurate wax patterns using volume-appropriate tooling to maintain dimensional consistency and surface fidelity.
Pattern Assembly & Gating Control
Next comes assembling wax patterns into optimized clusters to enable balanced metal flow and controlled solidification.
Ceramic Shell Formation
Our expert engineers create multi-layer ceramic shells that preserve dimensional stability and capture fine surface detail during pouring.
Dewaxing, Firing & Metal Pouring
After shell formation, we remove the wax and fire shells to prepare the mould for controlled alloy pouring under stable thermal conditions.
Finishing & Final Inspection
The final manufacturing phase involves finishing castings, performing required machining, and inspecting each component to verify dimensional accuracy and casting integrity.
Technical Specifications of Our Cryogenic Valve Casting
| Specification Area | Details |
|---|---|
| Development & Sampling | 25 to 40days |
| Casting Process | Investment casting/lost-wax casting |
| Material Grades | Stainless steels, carbon steels, duplex & special alloy |
| Industry Standards | ASTM, ASME, API, DIN, EN, ISO, BS, AISI |
| Shell Building Media | Silica sol, water glass, or mixtures of both |
| Casting Weight Range | 0.002kg to 150kg |
| Maximum Dimensions | ~1000mm |
| Minimum Wall Thickness | 1.5mm |
| Casting Tolerances | VDG P690, CT5–CT7, ISO 8062/VDG |
| Heat Treatment | Normalizing, Tempering, Quenching, Annealing, Solution, Carburization. |
| Surface Treatment | Polishing, Sand/Shot Blasting, Zinc Plating, Nickel Plating, OxidationTreatment, Phosphating, Powder Painting, Geormet, Anodizing |
Note: Certain technical specifications, such as wall thickness, are subject to change depending on the material used and applicable standards.
Why Choose Super Quali Cast for Cryogenic Valve Casting
Our manufacturing approach emphasizes controlled processes and consistent output across development and production.
Here’s what makes us a preferred choice:
Proven Experience in Cryogenic Valve Castings
We bring hands-on experience in manufacturing investment castings for cryogenic valves for a wide range of industries. This exposure helps us understand functional requirements, pressure containment needs, and service-specific constraints applied to cryogenic valve design.
Advanced Manufacturing Capabilities
Our manufacturing setup supports both simple and intricate cryogenic valve components. Using the lost-wax investment casting process, we control geometry, internal features, and dimensional consistency.
Material & Application Versatility
The materials we pick for cryogenic valve casting are matched with specific application requirements. These mainly include alloys suited for low-temperature service.
Quality, Testing & Global Supply Readiness
We manufacture castings for cryogenic valves with inspection and compliance requirements in mind. Our expert team follows proper testing, documentation, and supply needs for customers serving domestic and international markets.
Applications of Cryogenic Valve Castings
Our castings for cryogenic valves are used across industries handling low-temperature fluids and gases, including:
- LNG processing and transportation
- Industrial gas production and storage
- Chemical and petrochemical processing
- Energy and power generation systems
- Cryogenic fluid handling equipment
Discuss Your Cryogenic Valve Casting Requirements
Connect with our experts to discuss your cryogenic valve requirements, material options, lead times, and production readiness.
Frequently Asked Questions
1. What makes cryogenic valve castings different from standard valve castings?
Cryogenic valve castings retain toughness and dimensional stability at extremely low temperatures. Material selection, controlled solidification, and defect-free internal structure are critical to prevent brittleness and leakage.
2. What materials are best suited for LNG cryogenic valves?
LNG cryogenic valves typically use austenitic stainless steels, duplex grades, and selected nickel alloys that maintain toughness at sub-zero temperatures. Material selection depends on impact performance, pressure class, and operating temperature.
3. Do you support third-party inspection agencies for cryogenic valve castings?
Yes. We support third-party inspections based on project or end-user requirements. It includes coordination for dimensional inspection, material verification, and test witnessing in line with applicable international standards.
4. Can you support low-temperature impact test requirements?
Yes. Cryogenic valve castings can be supplied with low-temperature impact testing as specified in project documents or applicable standards. Test temperature, sample orientation, and acceptance criteria are defined during the qualification stage.
5. Can cryogenic valve castings support pressure-critical applications?
Yes. When designed and cast correctly, cryogenic valve castings can meet stringent pressure levels and are suitable for LNG, industrial gas, and other pressure-sensitive cryogenic systems.
6. How is internal soundness ensured in cryogenic valve castings?
We achieve internal soundness in our castings for cryogenic valves through controlled gating design, optimized shell building, and stable pouring conditions. This is followed by relevant inspection methods aligned with valve performance requirements.
7. Are investment castings suitable for complex cryogenic valve geometries?
Yes, investment casting is well-suited for complex valve bodies and components, allowing tight wall control, smooth internal passages, and near-net-shape production with minimal machining.
About Super Quali Cast: Background & Capabilities
We deliver precision investment castings with proven experience in cryogenic and industrial valve applications. Our key capabilities include:
- Decades of Casting Experience:
Manufacturing investment castings since 1983, specializing in valves and pressure components. - Focused Manufacturing:
Producing castings for valve components, pump parts, railway & agricultural equipment, automobile parts, and more. - Global Reach:
Serving domestic and international valve manufacturers, including exports to Europe and the USA.
- End-to-End Capabilities:
Handling tooling, casting, heat treatment, machining, and testing in-house; core processes rarely outsourced. - Production Scale & Compliance:
Operating with annual capacity above 2,400 MT and supporting certifications such as PED, AD 2000-MERKBLATT W0, IBR
Cryogenic Valve Investment Casting Solutions
High-performance casting components engineered for critical flow control applications across global industries.
