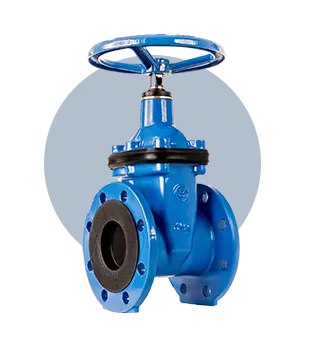

Valve castings that meet industry standards and end-user needs.
At Super Quali Casts, we manufacture investment casting for gate valves used to control flow across industries, such as oil and gas, food and beverage, and other municipal networks.
We manufacture and supply gate valve castings to industrial valve manufacturers and original equipment manufacturers (OEMs), who produce valves that find application in various industries.
Using the investment casting process, we produce gate valve casts that are precise, conform to specifications, and meet industry standards in material strength and longevity.
Our Manufacturing Process of Gate Valve Casting
Our investment casting for gate valves moves through the following stages:
Wax Pattern Creation and Investing
Our technicians produce accurate wax patterns by pouring molten wax into precision-engineered metal dyes for accuracy at scale. Next, our operators affix the wax patterns to a runner to form a wax pattern tree. They invest it into a ceramic slurry and coat it with stucco—up to eight times for optimal results.
Dewaxing
Foundrymen introduce the ceramic-coated wax pattern into an autoclave to melt the wax. They then drain the wax and shift the hollow ceramic shell into a high-temperature kiln. This strengthens the shell and removes any traces of remaining wax.
Chemical Analysis and Pouring
Experts use a spectrometer to test a small batch of the metal/alloy to be used and provide a material test certificate (MTC). Post inspection, casters pour the molten metal into the shells using gravity pouring.
Knockout and Separation
Worker’s knockout the ceramic shell using water jets and vibration. Machinists then separate the individual casts from the runner and fix any visual inconsistencies, with special emphasis on valve stem, gate, and rings.
Heat Treatment
Operators load individual casts into a kiln for heat treatment to improve surface hardness, temperature tolerances, and material strength.
Mechanical Analysis and Inspection
Engineers test casts in universal testing machines for tensile strength, yield stress, elongation, and reduction, followed by a final inspection for dimensional conformity and product integrity.
Technical Specifications of Our Gate Valve Casting
| Specification Area | Details |
|---|---|
| Development & Sampling | 25-40 days |
| Casting Process | Investment Casting | Lost-Wax Casting |
| Material Grades | Carbon Steel, Low Alloy Steel, Stainless Steel & Nickel-based Alloys |
| Industry Standards | API 600, ASME B16.34, BS5150/EN1984 |
| Shell Building Media | Ceramic and Stucco |
| Casting Weight Range | 0.007 kgs to 200 kgs |
| Maximum Dimensions | <=1000mm |
| Minimum Wall Thickness | 4-6 mm |
| Casting Tolerances | IT5 – IT7, CT5-7 |
| Heat Treatment Options | Normalizing, Solution Annealing, Quenching, and Tempering |
| Surface Treatment Options | Hot Dip Galvanizing, Nickel Coating, Black Oxide, Powder Coating, Electrophoretic Deposition, and Anodizing |
Note: Certain technical specifications, such as wall thickness, are subject to change depending on the material used and applicable standards.
Why Choose Super Quali Cast for Investment Casting for Gate Valves
At Super Quali Cast, we excel at producing investment casting for gate valves with our advanced manufacturing capabilities. Our well-trained engineers ensure quick turnaround times, production at scale, and quality control.
Proven Experience in Gate Valve Investment Castings
Our diverse industry experience uniquely positions us to understand and meet industry-specific requirements while adhering to functional and compliance-driven design needs.
Advanced Manufacturing Capabilities
We use advanced manufacturing capabilities to create investment gate valve casts as per specifications. We produce metal dyes and molds in-house, allowing us to customize faster and within the stipulated turnaround time, from prototype to production.
Material & Application Versatility
At Super Quali Cast, we regularly work with carbon and carbon-manganese steel, low alloy steel, ferritic stainless steel, and martensitic stainless steel. Other metal varieties our engineers can use (based on your requirements) include austenitic steel and nickel-based alloys.
We only work with materials that meet and exceed industry standards, are proven to support demanding service conditions, and align with application-specific performance expectations.
Quality, Testing & Global Supply Readiness
Testing and compliance checks apply to every product we manufacture at Super Quali Cast. Our gate valve casting production process includes testing the finished casts against a battery of tests and a round of final inspection to ensure quality control. We provide proper documentation and conform to domestic and international regulations that signal our export and supply readiness.
Applications of Gate Valve Castings
Industries worldwide use our gate valve castings for fluid management. Here are a few areas of their usage:
- Enables upstream and midstream movement of oil and natural gas.
- Water supply and transmission control within municipal networks.
- Mainline control and sluice management in agriculture, especially in the case of canal irrigation.
- Flow control in chemical processing.
- Regulating flow in dairy plants and breweries.
Discuss Your Gate Valve Casting Requirements.
Connect with our experts to share your gate valve casting needs. We will provide you with all the information, from lead times and material selection to prototyping and production readiness.
Frequently Asked Questions
1. Is investment gate valve casting the right choice for me?
If your design is complex and requires a high-degree of finish, investment gate valve casting is the right choice for you. In fact, it is the preferred choice for small to medium-sized gate valve castings. For large gate valve castings, sand casting is the better choice.
2. Which material is the best for investment casting for gate valves?
The best material for investment casting for gate valves depends on your needs and factors like environment, temperature, and fluid viscosity. We work with a wide variety of carbon steel, stainless steel, and nickel-based alloys.
3. Do you support third-party inspection agencies for investment casting for gate valves?
Yes, at Super Quali Cast, we support third-party inspection for investment casting for gate valves. Inspection depends on your needs and includes coordination for dimensions and tolerances, material verification, and test witnessing in line with international standards. We also support First Article Inspection.
4. How do you check for internal defects in gate valve casting?
We check for internal defects using non-destructive testing methods such as X-ray for gas pockets and dye penetrant inspections (DPI) for microscopic cracks.
About Super Quali Cast: Our Background & Capabilities
- Decades of Experience:
40+ years of experience in investment casting, specializing in valve production for OEMs and industrial valve manufacturers. - Focused Manufacturing:
Manufacturing casts and components that serve a wide variety of needs in agriculture, automobiles, railways, and general engineering. - Global Reach:
Supplying to domestic and international manufacturers, including those in the US and UK.
- End-to-End Capabilities:
In-house casting, machining, and testing. - Production Scale & Compliance:
Lean manufacturing with semi-automation in key processes for quicker production at scale. Operating with an annual production capacity above 2,400 MT. Compliance with IBR, PED, and AD 2000 Merkblett W0.
