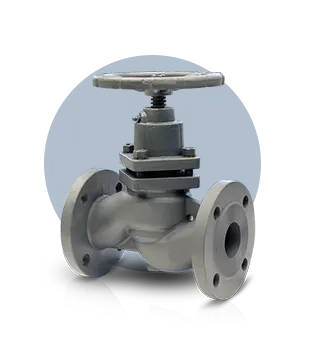

Manage thermal stress in pressure-prominent systems
At Super Quali Cast, we create investment castings for piston valves that manage hot fluids and gases in modern production systems. Our piston valve castings are supplied to valve manufacturers and OEMs producing valves for industries, such as textiles and pharmaceuticals.
We leverage the lost-wax casting process to continually deliver precise geometry, tight tolerances, and excellent finish. Currently exporting to industrial hubs globally, including those in the US, the UK, Canada, the UAE, Saudi Arabia, and Japan.

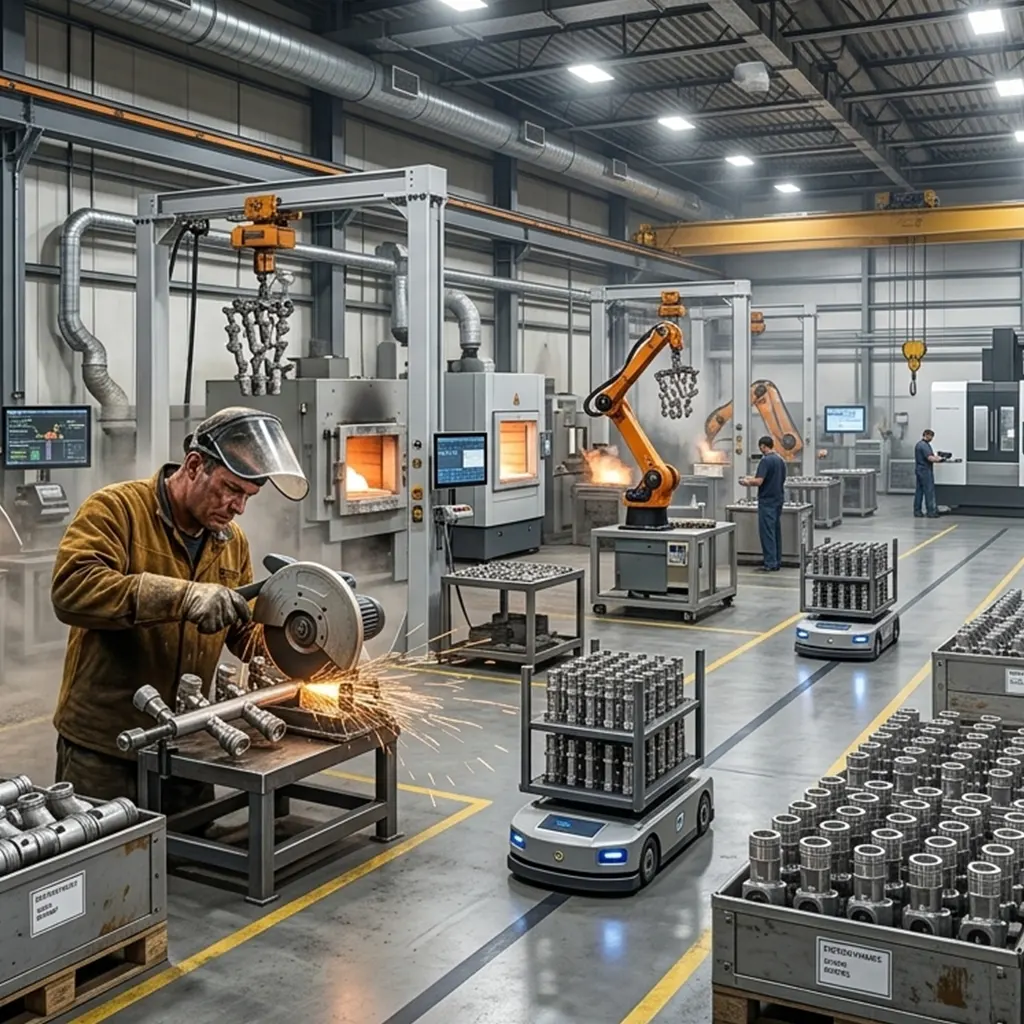

Our Manufacturing Process of Piston Valve Castings
Designed to deliver accurate geometry, excellent tolerance, and unmatched repeatability at scale.
Molding and Investing
Coating wax pattern tree in ceramic slurry to create shells.
Dewaxing
Placing the shells into a furnace to melt the wax and prepare them for pouring.
Pouring
Filling up the negative space in the ceramic shells with molten metal or alloy of choice.
Heat Treating
Loosening the castings from the shell and firing them to improve material strength and hardness.
Machining
Making necessary changes to ensure dimensional accuracy and a high degree of surface finish.
Final Inspection
Level-2 personnel-led NDT and Intergranular Corrosion Test to ensure design and application compliance.
Technical Specifications of Piston Valve Castings
| Specification Area | Details |
|---|---|
| Development & Sampling | 25-40 days |
| Casting Process | Investment Casting, Lost Wax Casting |
| Material Grades | Stainless Steel, Iron, Nickel-Alloy |
| Industry Standards | ASME B16.34, API 598, MSS SP-55 |
| Shell Building Media | Ceramic, Stucco |
| Casting Weight Range | Up to 200 Kg |
| Maximum Dimensions | 200-250 mm |
| Minimum Wall Thickness | 4-6 mm |
| Pressure | 16-63 bar |
| Temperature | Up to 450°C |
| Casting Tolerances | CT5-CT7 |
| Heat Treatment Options | Normalizing, Quenching, Tempering |
| Surface Treatment Options | Galvanizing, Powder Coating |
Note: Certain technical specifications, such as wall thickness, may vary based on the material used and applicable standards.
Why Choose Super Quali Cast for Investment Casting of Piston Valves
Proven Experience in Piston Valves Investment Castings
Adept at casting valve components for a wide range of valves, including piston valves. We leverage this experience to better understand functional and compliance-driven design needs, along with the operating conditions.
Advanced Manufacturing Capabilities
Modern manufacturing facility with support for casting simple and intricate components. Our scalable setup ensures we quickly move from prototyping to production. Each step of the production process is carried out in-house, with adequate checks and balances at every stage.
Material & Application Versatility
Skilled at casting with standard metals and custom alloys. Our material know-how helps us create valve components that support demanding conditions. We also ensure our castings, such as piston valve castings, meet application-specific performance expectations.
Quality, Testing & Global Supply Readiness
Exporting investment valve castings globally. We supply to a range of businesses and are acutely aware of the compliance requirements for international markets. To that end, we provide certificates for material and in-house testing and support third-party testing, if requested.
Applications of Piston Valve Investment Castings
Piston valves are the workhorses of the industrial world, especially when it comes to pressure-oriented processes. Our piston valve investment castings feature prominently in making these valves, which are further used in:
- Refineries: Isolating heat exchangers successfully.
- Textiles: Effectively distributing steam to vats.
- Food and Beverage: Managing the constant movement of steam and hot water, especially in sterilization lines.
- Pharmaceuticals: Maintaining constant temperature across batches by precisely managing pressure along supply lines.
- Power Plants: Controlling large volumes of steam and hot fluids, and preventing thermal binding.
Discuss your Piston Valve Casting needs.
Get in touch to learn more about design choices, material alternatives, and custom solutions.
Frequently Asked Questions
Are piston valves better for steam than standard and ball valves?
Yes, piston valves are better when it comes to working with steam. Standard valves and ball valves may suffer from wire-drawing, while piston valves offer a bubble-tight seal.
Do piston valves succumb to thermal binding?
No, piston valves do not usually succumb to thermal binding. This is on account of the seal creating a lateral pressure. If the piston expands due to heat and pressure, the rings compress to ensure a continued tight seal and negligible mechanical stress.
Is investment casting suitable for piston valves?
Yes, investment casting is one of the best manufacturing ways for piston valves. Not only do we obtain a near-net shape, but it’s also much easier to create intricate geometries while preserving component synergy.
What end types are available in your investment casting for piston valves?
Our investment casting for piston valves features flanged, screwed, and butt-welded end types.
About Super Quali Cast: Our Background & Capabilities
- Decades of Experience:
Manufacturing a wide range of valve castings for more than forty years. - Focused Manufacturing:
Casting parts for valve manufacturers and OEMs serving several industries, including petroleum and pharmaceuticals. - Global Reach:
Exporting valve components to companies in the US, the UK, Canada, Brazil, and the EU. We also supply to businesses in the UAE, Saudi Arabia, Qatar, and to manufacturers in Japan and Taiwan.
- End-to-End Capabilities:
From designing to casting and machining, every key process is carried out in the same facility. - Production Scale & Compliance:
Producing more than 2,400 MT annually and compliant with multiple design, application, and production standards.
