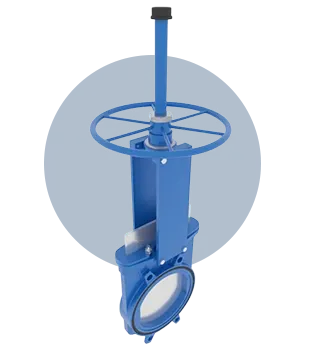

Knife gate valve castings for flow-critical operations
At Super Quali Cast, we manufacture investment castings for knife gate valves for flow-critical operations across various industries. Predominantly, these castings are used in industries where viscous fluids and fluids with submerged media are common.
We produce most of our casts using the lost-wax process to ensure precision and lower finishing costs. As a reputed component supplier, we serve industrial valve manufacturers and OEMs in India, North America, Europe, and Asia-Pacific.
Our Manufacturing Process of Knife Gate Valve Casting
Wax Pattern Creation and Investing
Creating wax patterns in-house, attaching them to a runner, and investing the wax pattern tree into a ceramic slurry. This is done up to eight times for hardness and strength.
Dewaxing
Introducing the ceramic shell into an autoclave to melt the wax and produce a precise negative space. Further placing the ceramic cast in a kiln to strengthen it, remove remaining traces of wax, and get the cast ready for pouring.
Material Testing and Controlled Pouring
Testing the molten metal for purity and compliance with standards, issuing an MTC, and then proceeding with gravity pouring.
Knockout and Separating
Separating the casts from the ceramic shell using water jets and vibrations. Sending them to the machinist for isolating each cast from the tree and removing excess material.
Heat Treating
Placing the individual casts in a kiln for heat treatment to improve material strength and surface hardness.
Inspecting
Final round of inspecting of dimensional accuracy, product finish, and product readiness. Checks are done visually, via universal testing machine, and component-specific tests.
Technical Specifications of Our Knife Gate Valve Casting
| Specification Area | Details |
|---|---|
| Development & Sampling | 25-40 days |
| Casting Process | Investment Casting, Lost wax Casting |
| Material Grades | Stainless Steel, Iron, Nickel-based Alloys |
| Industry Standards | MSS SP-81, ASME B16.34, API 598 |
| Shell Building Media | Ceramic, Stucco |
| Casting Weight Range | 0.005kg to 100kg |
| Maximum Dimensions | <=1000mm |
| Minimum Wall Thickness | 15mm |
| Casting Tolerances | IT5-7,CT5-7 |
| Heat Treatment Options | Normalizing, Annealing, Quenching, Tempering |
| Surface Treatment Options | Shot blasting, Electropolishing, Pickling, Powder Coating, Anodizing |
Note: Certain technical specifications, such as wall thickness, are subject to change depending on the material used and applicable standards.
Why Choose Super Quali Cast for Knife Gate Valve Casting
At Super Quali Cast, we produce knife gate valve castings using a variety of materials and contemporary production processes. Our finished castings are designed to have high tolerance, high durability, and achieve application fit.
Proven Experience in Knife Gate Valve Investment Castings
Our engineers have extensive experience in producing knife gate valve castings. This helps us better understand your needs and meet them while adhering to industry standards.
Advanced Manufacturing Capabilities
Super Quali Cast manufactures investment casts in an ISO 9001 facility. End-to-end production capabilities and state-of-the-art machinery ensure quick turnaround from prototype to finished components.
Material & Application Versatility
Our setup lets us work with standard materials such as stainless steel as well as special alloys of iron and nickel for producing casts for knife gate valves. Our valve components are effective in demanding working conditions and support application-specific performance expectations.
Quality, Testing & Global Supply Readiness
Every investment casting for a knife gate valve undergoes rigorous testing before shipment, and we provide all the relevant documents. Additionally, we support third-party audits and proper paperwork for global supply to regions in North America, Europe, the Middle East, Latin America, and Asia-Pacific.
Applications of Knife Gate Valve Castings
Knife gate valve castings produced at Super Quali Cast find application in several industries that work with viscous fluids and submerged solid particles, such as:
- Paper and pulp: Successfully working with difficult submerged solid media such as straw and hemp.
- Mining: Managing the flow of viscous fluids and dense slurries due to extraction and dirt removal.
- Waste water treatment: Regulating the flow of slurries with a high degree of suspended organic matter.
- Chemical and petroleum: Enabling and stopping the flow of corrosive and viscous fluids such as aggressive acids and drilling fluids.
- Food & Beverage: Regulating the flow of viscous liquids such as syrups, mayonnaise, and batter.
Discuss Your Knife Gate Valve Casting Requirements
Reach out to our valve experts to discuss your casting needs. Get information from lead times and prototypes to production and delivery.
Frequently Asked Questions
1. Which is the right fit for me—gate valve or knife gate valve?
If your need revolves around regulating the flow of clean fluids, choose a gate valve. However, if the fluids in question are viscous or contain submerged media, a knife gate valve is the better choice. For additional information, check out our gate valve casting product page.
2. Which is the best material for castings for knife gate valves?
The best material for castings for knife gate valves will depend upon your exact needs and standard requirements. However, stainless steel is the most common choice on account of its strength and resistance to corrosion.
3. Do you support custom flange configurations?
Yes, we support custom flange configurations for knife gate valve castings. These will be as per your requirements and meet global standards, such as PED and JIS.
4. Which knife valve designs can you produce?
At Super Quali Cast, we produce investment castings for knife valves in the following designs:
- Wafer
- Flanged
- Bi-directional
- Push-through (slurry)
- Knife-edge
Currently, we only produce bonnetless knife gate valve castings.
5. How do you ensure quality assurance for valve castings?
Our valve castings pass multiple checks during and after the production process.
- Material Test Certificate (MTC): We check the material to be used in production before pouring.
- Machining: Machinists visually inspect components, remove excess materials, and make geometric corrections if necessary.
- Universal Testing Machine: We check finished components on a universal testing machine that checks tensile strength, surface hardness, tension, etc.
- Non-Destructive Testing (NDT): X-ray and Dye Penetrant Testing (DPT) to check for gas pockets and micro-leaks in the components.
About Super Quali Cast: Our Background & Capabilities
We deliver precision investment castings with proven experience in cryogenic and industrial valve applications. Our key capabilities include:
- Decades of Experience:
Producing investment castings for four decades and counting, specializing in valves and pressure components. - Focused Manufacturing:
Manufacturing castings for valve components, automobile parts, pump parts, and more. - Global Reach:
Serving domestic and international valve manufacturers, including those in the USA, Canada, the UK, Europe, the Middle East, Japan, and the Asia Pacific.
- End-to-End Capabilities:
Entire production carried on in-house, from 3D-printing wax patterns to casting, machining, and final testing. - Production Scale & Compliance:
Operating with an annual output of more than 2,400MT. Compliance with leading standards, including API, ASME, and PED.
