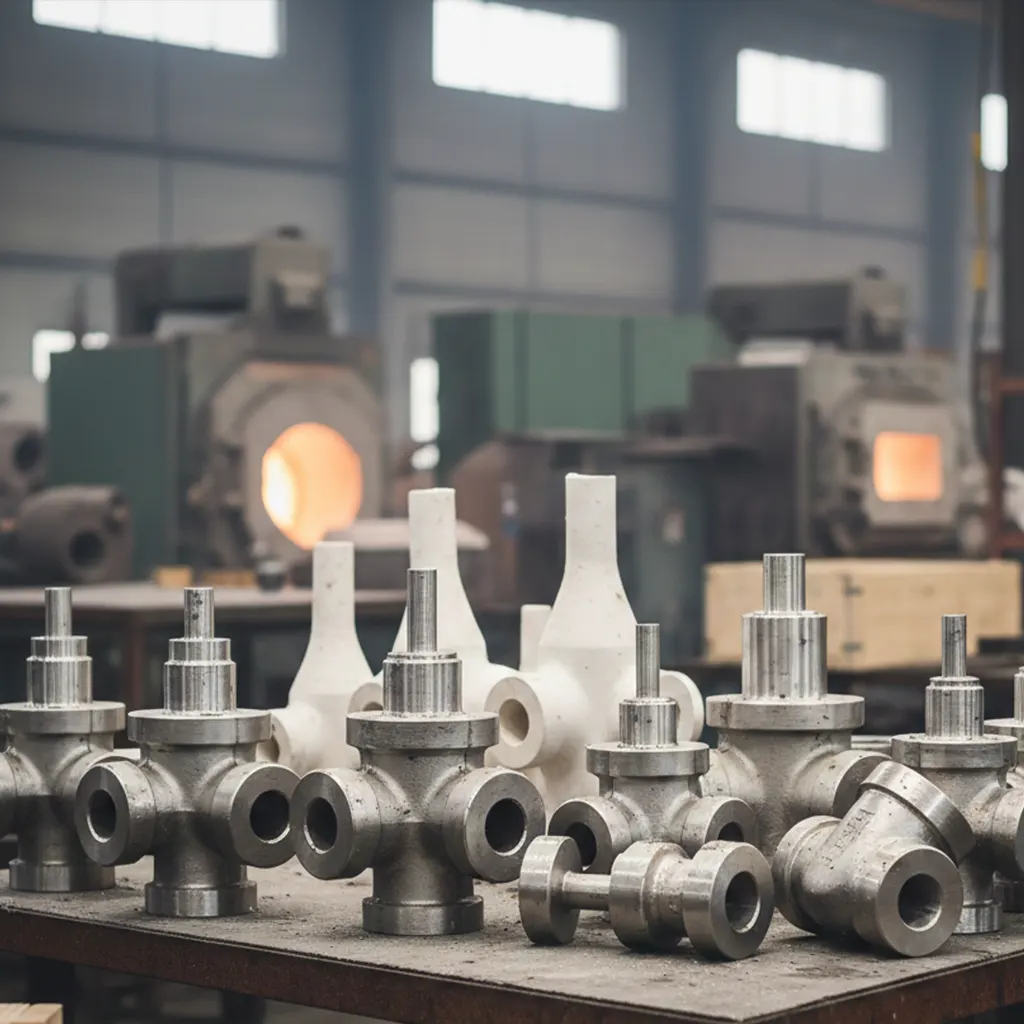

Precision globe valve casts for pressure-sensitive production lines
At Super Quali Casts, we manufacture investment castings for globe valves that are used across a range of industries. Produced in JIS and IBR certified facilities, our globe valve castings are central to every operation where it’s necessary to throttle the flow of gases and liquids.
Our finished castings are supplied domestically to valve manufacturers and OEMs as well as exported to similar businesses in North America, Europe, and Japan. We produce our globe valve castings using the investment casting process for superior dimensional accuracy and surface finishing.
Our Manufacturing Process of Globe Valve Casting
At Super Quali Cast, the Globe Valve casting moves through the following process:
Wax Pattern Creation and Investing
We create wax patterns for the globe valve components and attach them to a runner. This runner is invested in a high-grade ceramic slurry and coated with stucco—up to eight times.
Dewaxing
Our foundrymen introduce the runner in an autoclave to melt the wax and get the cast ready for pouring. The ceramic cast is put in a high-temperature kiln to melt any traces of remaining wax and strengthen the cast itself.
Material Testing and Controlled Pouring
We test a small sample of the metal to be poured in a spectrometer, and upon satisfaction, provide an MTC (Material Testing Certificate). Casters then pour the metal into the hollow ceramic shells using gravity pouring.
Knockout and Separation
Worker’s knockout the ceramic shells using vibration and water jets. Machinists separate the components from the runner and provide finishing touches to the body, stem, and bonnet for dimensional conformity.
Heat Treatment
Workers load the individual finished casts into a kiln to improve material strength, surface hardness, and pressure tolerance.
Final Inspection
Experts check the finished products using a universal tester for yield stress, tensile strength, reduction, etc. Dimensional and visual checks ensure a zero-defect output every time.
Technical Specifications of Our Globe Valve Casting
| Specification Area | Details |
|---|---|
| Development & Sampling | 25-40 Days |
| Casting Process | Investment Casting, Lost Wax Casting |
| Material Grades | Stainless Steel, Carbon Steel, Iron, Nickel-based Alloys |
| Industry Standards | ASME B16.34, ASTM 216, ASTM A351, ISO 5208 |
| Shell Building Media | Ceramic, Stucco |
| Casting Weight Range | 0.005kg to 100kg |
| Maximum Dimensions | <=1000mm |
| Minimum Wall Thickness | 15mm |
| Casting Tolerances | IT5 – IT7, CT5-7 |
| Heat Treatment Options | Normalizing, Annealing, Quenching, Tempering |
| Surface Treatment Options | Shot Blasting, Electropolishing, Pickling |
Note: Certain technical specifications, such as wall thickness, are subject to change depending on the material used and applicable standards.
Why Choose Super Quali Cast for Globe Valve Casting
We at Super Quali Cast have been producing Globe Valve Castings for a wide-range of industries. Our casts are designed to be long-lasting, low-maintenance, and comply with international standards.
Proven Experience in Globe Valve Investment Castings
Our extensive experience in globe valve casting manufacturing helps us better understand and serve your needs while still conforming to functional design and industry standards.
Advanced Manufacturing Capabilities
Lost wax investment casting is one of our areas of expertise, and we have the infrastructure to design and deliver simple and intricate valve components. Our molds and dyes are designed in-house, allowing for quick movement from prototype development to mass production.
Material & Application Versatility
As an ISO 9001-certified cast manufacturer, we use various metals and alloys to build globe valve castings. Our team makes valve components to support demanding service conditions and application-specific performance conditions.
Quality, Testing & Global Supply Readiness
We are proficient in supplying investment casting for globe valves to domestic and international valve manufacturers and OEMs. Thus, our globe valve finished casts are not only tested in-house but also comply with international standards such as ASME B16.34. We provide proper documentation with every order and support customers in third-party testing.
Applications of Globe Valve Castings
Globe valves are used across industries where fluids are involved and are specifically useful for controlling the flow of fluids.
- Pharmaceuticals: Critical for managing the rate of flow of chemicals from one point to another.
- Petroleum: Used for controlling the flow of crude and refined oil in oil refineries.
- Manufacturing: Especially where boilers play a crucial role.
- Municipal: Helps control the rate of flow of water supply to nodes and end users.
Discuss Your Globe Valve Casting Requirements
Choosing the right globe valve casting can get overwhelming. Connect with our experts to discuss your globe valve requirements, material options, and lead times.
Frequently Asked Questions
Is investment globe valve casting the right choice for me?
Investment globe valve casting is the right choice for you if you need small to medium sized glove valve casts. Sand casting is a better fit for large globe valve casts, though internal components such as seats, discs, and plugs are almost always investment cast.
Which is the best material for investment casting of globe valves?
The best material for investment casting of globe valves depends on end-user needs. Material changes depending on design and operational conditions, but stainless-steel works for most use cases.
Which globe valve designs can you cast?
We cast all three types of globe valves in use contemporarily.
- T-shape
- Angle pattern (90°angle)
- S-shaped (Z-shaped)
How do you check internal defects in globe valve casting?
We check internal defects in globe casting using X-ray for gas pockets and dye penetrant testing (DPT) for micro-cracks.
Do you provide separate pressure tests for your globe valve castings?
No, we do not provide separate pressure test certifications for our globe valve castings. All our castings are produced in an ISO 9001 facility and comply with ASME B16.34.
About Super Quali Cast: Our Background & Capabilities
- Decades of Experience:
Producing various valve casts for valve manufacturers and OEMs since 1983. - Focused Manufacturing:
Manufacturing casts and components that serve a wide variety of needs in industries like agriculture, railways, oil and gas, automobiles, and more. - Global Reach:
Supplying to domestic and international businesses, including those in the US, EU, Middle East, Asia-Pacific, Latin America, and North America.
- End-to-End Capabilities:
State of the art facilities that provide end-to-end capabilities from prototype to finished casts. - Production Scale & Compliance:
Semi-autonomous processes for quick turnaround times coupled with lean manufacturing. Annual production capacity of 2,400 MT. ISO 9001, IBR certified, and compliance with AD 2000 Merkblett W0.

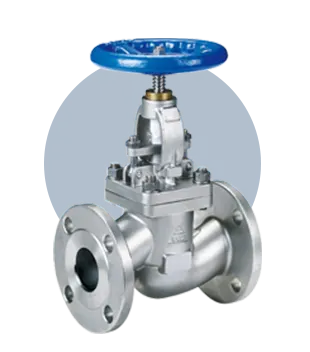

Globe Valves Investment Casting Solutions
High-performance casting components engineered for critical flow control applications across global industries.
