Investment Castings For Pinch Valve

Heavy-duty components for supporting demanding applications

Pinch valves are the silent workhorses of multiple heavy-duty industries where the flow media rotates between sludge and streams of highly abrasive particles. It leverages a simple full-bore elastomeric sleeve design to toggle abrasive media flow, with the sleeve also acting as an impact absorber. Engineers and procurement managers alike prefer this flexible barrier valve because they are easy to operate and even easier to maintain.

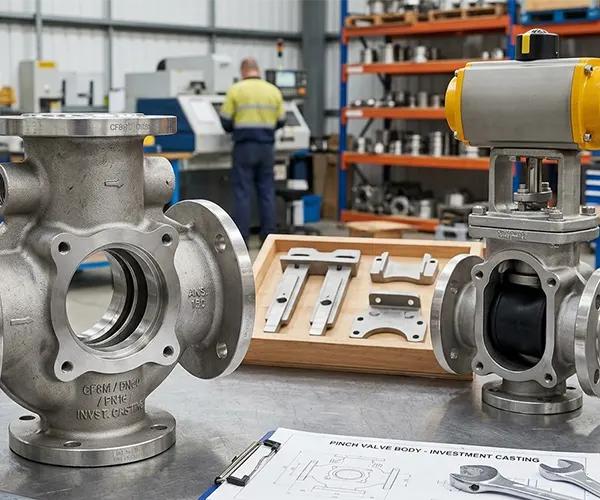

At Super Quali Cast, we manufacture investment castings for pinch valves, including pinch valve body castings and bonnets for demanding industrial applications. Our pinch valve bonnets and bodies support a range of internal mechanisms, flanges, and actuators. We complement standard designs with proprietary builds that are an exact match where product-application fit is concerned. Rapid prototyping, fast tooling, thorough testing, just-in-time delivery, and scalable supply are some of the reasons why local and global OEMs and valve manufacturers work with us.

Request a Quote

How We Manufacture Investment Castings for Pinch Valves

A premier investment casting manufacturer, Super Quali Cast’s process involves an array of tightly controlled steps. Our lost wax castings for pinch valves are produced through stringent quality controls and process monitoring. These are the key ones’ instrumental to our process.

Precision Molding

Establishes repeatable and accurate shapes and cavities.

Controlled Pouring

Eliminates turbulence defects and promotes even spread to reduce porosity and product shrinkage.

Heat Treatment

Improves mechanical characteristics including surface hardness and grain structure.

CNC Machining

VMC and HMC-led process that delivers tight tolerances.

Final Inspection

Visual, mechanical, and chemical checks for defect-free output.

To learn more about our lost-wax casting process in-depth, visit our investment casting process page.

Technical Specifications of Our Pinch Valve Castings

Specification Area	Details
Development & Sampling	25-40 days
Casting Process	Investment casting, Lost-wax casting
Material Grades	Carbon steel, Stainless Steel
Industry Standards
Shell Building Media	Ceramic, Stucco
Casting Weight Range	3-100 kg
Maximum Dimensions
Minimum Wall Thickness	4-6 mm
Casting Tolerances	CT 5–CT 7
Heat Treatment Options	Annealing, Normalizing, Tempering, Solution treatment
Surface Treatment Options	Passivation, Galvanization, Chromium plating, Powder coating, Electroplating

Note: Parameters subject to change based on final design.

Why Choose Super Quali Cast for Pinch Valve Casting?

Proven Experience in Manufacturing Investment Castings for Pinch Valves

We have produced investment castings for pinch valves and other industrial valve components for more than two decades for businesses across multiple sectors. We have successfully supplied components that perform admirably in adverse conditions without deforming or sweating. This exposure over the years has enabled us to address functional and design-driven compliance needs.

Advanced Manufacturing Capabilities

As lost-wax casting manufacturers in India, we possess the infrastructure, knowledge, and personnel required to support simple and intricate designs. Furthermore, our scalable ISO-compliant setup is designed to seamlessly move from prototyping stage to at-volume production, thereby reducing turnaround times.

Material & Application Versatility

We have built our investment casting expertise with an emphasis on material and process versatility. We manufacture stainless steel pinch valve castings, carbon steel pinch valve castings, and other alloy grades to help you select the right material for your application. Our materials page lists the popular alloys and grades we cast with, as well as additional details on supporting special alloys.

Quality, Testing & Global Supply Readiness

We complement our extensive in-house testing (dye penetrant, CMM, and universal machine tests) with support for third-party inspections. You benefit from better transparency, exhaustive test records, and greater insight into design and technical compliance. Our focus on testing also helps us be compliance-aware for international markets. This helps us export to the U.S.A., Canada, Brazil, the U.K., Germany, Saudi Arabia, the U.A.E., Qatar, Japan, Australia, and other leading countries.

Applications of Investment Castings for Pinch Valves

Pinch valve castings are used in piping systems across industries that handle abrasive, corrosive, slurry-based, and other challenging media.

Mining: Pinch valves are used to effectively toggle the flow of slurry, tailings, and crushed ores from the point of extraction to refineries.
Utility: The valves enable unhindered flow of sludge, grit, and other suspended media in wastewater while also isolating them for treatment.
Chemicals: Used in systems that handle viscous liquids, which otherwise would clog regular valves.

Super Quali Cast's Expertise in Pinch Valve Castings

With decades of foundry expertise, advanced manufacturing capabilities, and a commitment to quality, Super Quali Cast delivers reliable pinch valve castings that meet the performance, compliance, and supply requirements of OEMs and valve manufacturers worldwide.

Decades of Experience: Investment casting manufacturers in India for over forty years.
Focused Manufacturing: Producing precision investment castings for pinch valves for end use in mining, utility, chemical, and other industrial applications.
Global Reach: Supplying to OEMs and valve manufacturers in North America, the EU, the Middle East, and Asia-Pacific.

End-to-End Capabilities: From concept-to-creation with no scope for third-party involvement.
Production Scale & Compliance: Annual production exceeding 2,400 metric tons. We are certified ISO, PED, Merkblatt W0, and IBR compliant.

Discuss Your Pinch Valve Investment Casting Requirements

Whether you are looking for custom OEM pinch valve components, proprietary designs, or off-the-shelf pinch valves, our experts can help you make the optimal choice and reduce total ownership costs. Share your drawings or specifications with us and get a tailored quote.

Request a Callback

Frequently Asked Questions

How many types of pinch valves are there?

There are two types of pinch valves, based on their internal mechanism. There are pinch valves where a compressor squeezes the sleeve against a raised fixed seat on the valve’s inner body. The other type uses a mechanism that raises the seat to meet the descending sleeve lining, thereby creating a pronounced pinching effect.

Do you create valve components for both these types of pinch valves?

Yes, at Super Quali Cast, we produce valve bodies and bonnets that support both valve mechanisms. Our lost-wax casting expertise coupled with our top-of-the-line CNC support means we deliver products with tight tolerances and excellent geometric accuracy.

Do you provide the inner sleeve used in pinch valves?

No, we do not provide the elastomeric inner sleeves that are used in pinch valves. We only provide those components that can be manufactured using the investment casting process.

Which is the best material for casting pinch valve components?

The best material for casting pinch valve components is the one that meets your project’s goals. The valve body and the inner elastic sleeve need to be solvent-compatible as well as support the right temperature and pressure. Common materials used to create valve components include low-carbon steel for carbon steel pinch valve castings and 304/316 grades for stainless steel pinch valve castings.
