Seamless media mixing and separation
At Super Quali Cast, we produce investment castings for three-way ball valves that separate, stop, and successfully mix liquids and gases. Our castings for three-way ball valves are used by OEMs and valve manufacturers who service petroleum, pharmaceutical, and other fluid-centric industries.
All our valve components, including those made for multi-port ball valves, are manufactured in-house using the lost wax casting process. We supply the same to domestic businesses and export them to leading industrial hubs globally.
Our Manufacturing Process of Investment Casting for Three-Way Ball Valves
Molding and Investing
Investing wax molds into a ceramic slurry, up to eight times.
Dewaxing
Placing molds in a furnace to melt the wax and get it ready for pouring.
Pouring
Gravity pouring the molten alloy into the hollow ceramic shells.
Heat Treatment
Introducing the knocked-out components into a furnace to improve material strength and hardness and melt any leftover wax.
CNC Machining
Grinding, milling, and drilling to ensure excellent sealing and surface finish.
Final Inspection
Dimensional and visual checks using modern equipment to comply with internal and industrial standards.
Technical Specifications of Our Three-Way Ball Valve Castings
| Specification Area | Details |
|---|---|
| Development & Sampling | 25-40 days |
| Casting Process | Investment Casting, Lost Wax Casting |
| Material Grades | Stainless Steel, Iron, Exotic Alloys |
| Industry Standards | ASME B16.34, API 598 |
| Shell Building Media | Ceramic, Stucco |
| Pressure | 16 to 40 bar |
| Casting Weight Range | 10-150 kg |
| Connection | Screwed, Butt Welded, Screwed Welded |
| Maximum Dimensions | 800mm |
| Minimum Wall Thickness | 5.6 mm |
| Casting Tolerances | CT5-CT7 |
| Heat Treatment Options | Normalizing, Quenching, Tempering |
| Surface Treatment Options | Powder Coating |
Note: Certain technical specifications, such as wall thickness, are subject to change depending on the material used and applicable standards.
Why Choose Super Quali Cast for Castings for Three-Way Ball Valves
Proven Experience in 3-way Ball Valve Investment Castings
Extensive background in casting industrial valve components, including investment castings for three-way ball valves. We leverage our experience to cast valve components that meet functional and design needs.
Advanced Manufacturing Capabilities
Skilled lost-wax investment casting enterprise with strong prototype-to-production capabilities. We are proficient in casting simple and intricate valve designs.
Material & Application Versatility
Proven competency in working with standard and special alloys that meet demanding service conditions. Additionally, our investment cast valve components deliver application-specific performance expectations.
Quality, Testing & Global Supply Readiness
Compliance awareness for domestic and international markets. We export to valve manufacturers and OEMs globally and support third-party testing, if required.
Applications of 3 Way Ball Valve Castings
3-way ball valve castings feature prominently wherever mixing and segregating flow media is important. They are usually put to use in the following industries:
- Oil & Gas: Diverting flow from one endpoint to the other.
- Chemicals: Bypassing components without shutting down systems.
- Agriculture: Merging two or more pesticide or fertilizer flows.
- General Engineering: Mixing liquid and gaseous media and controlling the endpoints.
Discuss your three-way ball valve investment casting needs
Speak with our experts to learn more about prototyping options, material choice, and MOQs.
Frequently Asked Questions
When to choose investment casting for three-way ball valves
You should choose investment castings for three-way ball valves when your valve requirements are NPS 8 or lower. Investment cast three-way ball valves have precise internal flow paths and surface finish.
What is the impact on Total Cost of Ownership?
Our 3-way ball valve castings are made using industrial-grade steel or special alloys, as per your requirements. Quality raw materials, controlled pouring, and rigorous testing ensure the components meet and sustain demanding service conditions.
What ports do these lost-wax cast three-way ball valves support?

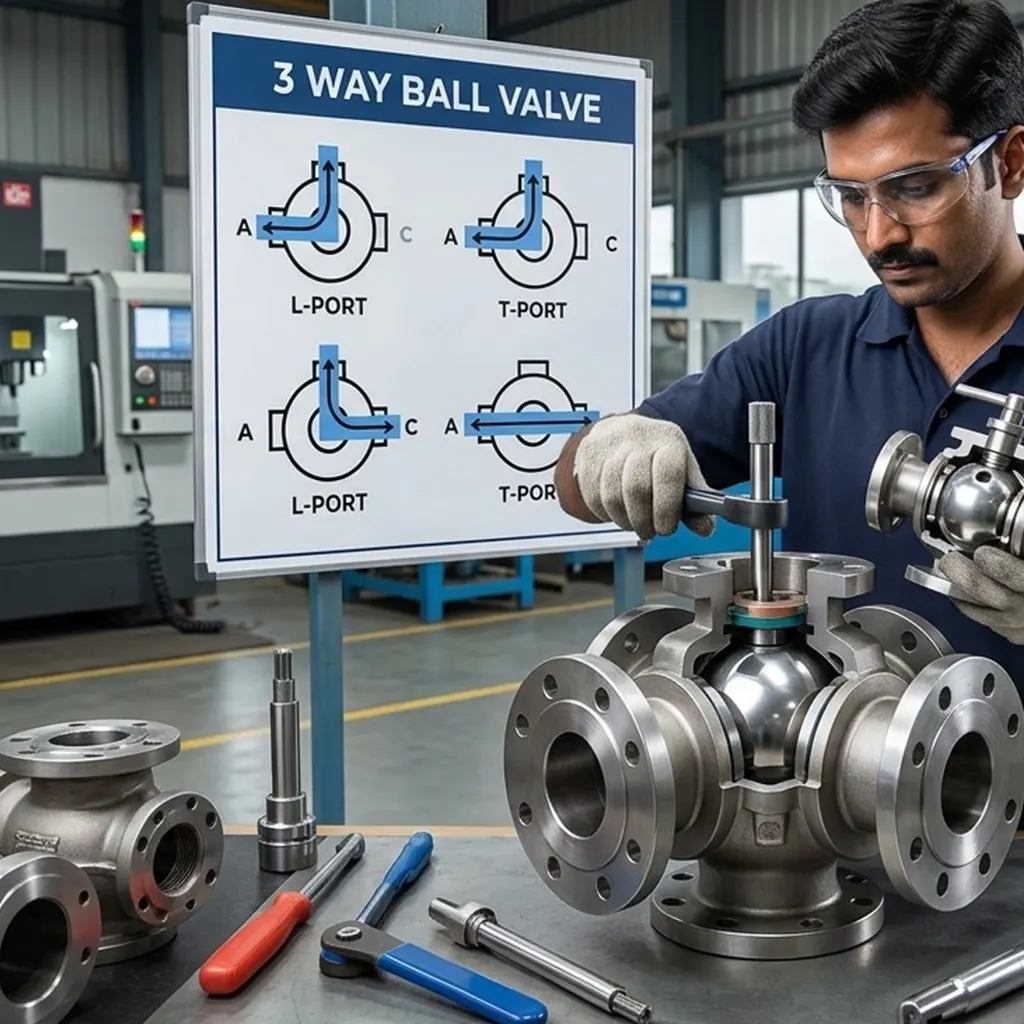

Our lost wax cast three-way ball valves support both L and T ports.
How to choose the right 3-way ball valve casting?
To choose the right 3-way ball valve casting for your needs, focus on the following:
- Exact valve requirement (NPS value)?
- Material integrity that addresses ‘sour service.’
- Flow pattern
- Wall thickness consistency, especially at the 90°bend.
About Super Quali Cast: Our Background & Capabilities
- Decades of Experience::
Manufacturing investment castings for three-way ball valves and other valve components for four decades. - Focused Manufacturing::
Building components for valve manufacturers and OEMs serving automobile, oil and gas, petroleum, and chemical industries. - Global Reach::
Shipping valve components to industrial concerns in the US, the UK, Canada, and Europe. We also export to businesses in the Middle East and the Asia-Pacific.
- End-to-End Capabilities::
Full-cycle development in an ISO certified state-of-the-art facility. - Production Scale & Compliance::
Upwards of 2400 MT in annual production. Compliance with domestic and international standards, including IBR and PED.
