Robust isolation components for elastomeric systems

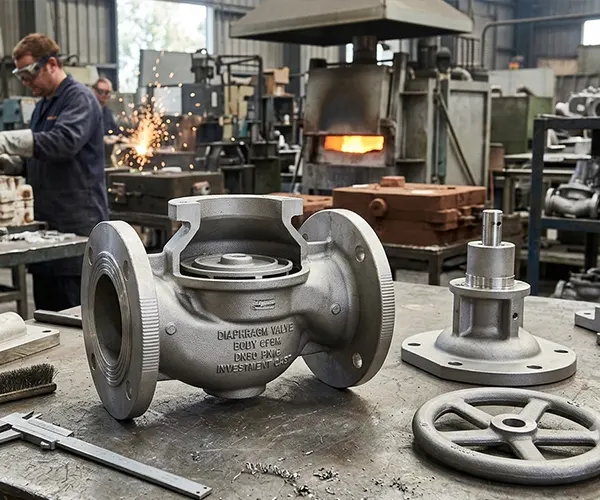

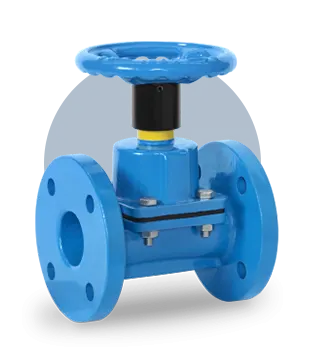

Diaphragm valves control the flow of corrosive, abrasive, and high-purity media across a range of industries. Super Quali Cast manufactures investment castings for diaphragm valves, including diaphragm valve body castings and bonnets for weir-type and full-bore designs. Our valve body investment casting process ensures dimensional accuracy, consistent quality, and compliance with industry standards. Its USP lies in completely isolating the valve mechanism from the media, thereby lowering maintenance costs and increasing shelf life. Elastomeric materials form the sealing surface, providing excellent metering during operation and a hermetic seal when shut off.
Super Quali Cast produces investment castings for diaphragm valves for both Weir saddle valve type and Full-bore valve type. We use a range of materials to cast valve bonnets and bodies, and ensure they comply with design, technical, and functional standards. We produce diaphragm valve bodies with endpoints of your choosing flanged ends, threaded ends, socket weld ends, butt weld ends, lug ends or a proprietary design that supports your system. Valve manufacturers and OEMs domestically and overseas partner with us to create customised, cost-effective solutions, while reaping the benefits of just-in-time delivery.
Manufacturing Process for Diaphragm Valve Investment Castings
As experienced manufacturers of diaphragm valve investment castings, we combine advanced lost-wax casting technology, skilled personnel, and integrated foundry operations to produce high-quality valve bodies and related components with consistent dimensional accuracy and mechanical performance. Together, the system ensures oversight, especially of the following key processes.
Precision Molding
Creates repeatable, accurate shapes and cavities.
Controlled Pouring
Delivers an even material spread and curbs turbulence defects.
Heat Treatment
Improves grain structure and surface hardness while retaining a soft core.
CNC Machining
Tailored to tight tolerances in the form of accurate reams and smooth surfaces.
Final Inspection
Visual, mechanical, and chemical tests for absolute quality assurance.
For an exhaustive breakdown of our lost-wax casting process, visit our investment casting process page.
Technical Specifications of Our Diaphragm Valve Castings
| Specification Area | Details |
|---|---|
| Development & Sampling | 25-40 days |
| Casting Process | Investment casting, Lost-wax casting |
| Material Grades | Carbon steel, Stainless Steel, Bronze, Brass |
| Industry Standards | ASME B16.34, MSS SP-88, EN 13397 |
| Shell Building Media | Ceramic, Stucco |
| Casting Weight Range | 3-100 kg |
| Maximum Dimensions | 3 inches |
| Minimum Wall Thickness | 4-6 mm |
| Casting Tolerances | CT 5–CT 7 |
| Heat Treatment Options | Annealing, Normalizing, Tempering, Solution treatment |
| Surface Treatment Options | Passivation, Galvanization, Chromium plating, Powder coating, Electroplating |
Note: Parameters subject to change based on final design.
Why Choose Super Quali Cast for Diaphragm Valve Investment Castings?
Proven Experience in Manufacturing Investment Castings for Diaphragm Valve
In our more than four decades of operations as an investment casting manufacturer in India, we have manufactured components for a range of valves. This includes diaphragm valves and other flexible closure valves for multiple industries. This exposure has enabled us to deeply understand and deliver on functional and compliance-driven design needs.
Advanced Manufacturing Capabilities
Over the years, we have honed our lost-wax casting expertise to produce castings that nearly eliminate the need for secondary operations. Our ISO 9001 infrastructure and emphasis on good manufacturing practices help us manufacture simple and intricate investment castings with equal ease. Furthermore, our scalable setup ensures we support businesses as they transition through various stages of growth.
Material & Application Versatility
Our casting proficiency is built on our material acumen. We work with a wide variety of alloys and superalloys to ensure the final product achieves product-application fit. Our experience supporting demanding service conditions helps us advise you on material choices to ensure you pick the best fit for your project.
Quality, Testing & Global Supply Readiness
Super Quali Cast is a diverse investment casting exporter to the U.S.A, Canada, Brazil, U.K., Germany, Saudi Arabia, the U.A.E, Qatar, Japan, Australia, and other leading countries. We remain compliance-aware for international markets in North America, EU, the Middle East, and Asia-Pacific and provide logistics support where required. Thorough documentation, including exhaustive test results, ensures there are no surprises during transit or delivery.
Applications of Diaphragm Valve Castings
Diaphragm valves feature prominently in processes and systems that work with constant pressure and temperature, and handle corrosive and moderately abrasive media.
- Pharmaceuticals: Diaphragm valves control the flow of critical solvents since it prevents contamination.
- Food & Beverage: Used as isolation valves for aseptic delivery of food-grade liquids.
- Utility: Used in water treatment plants for its excellent hermetic sealing and corrosion resistance properties.
- Chemical: Favoured since the internal elastomer can be made solvent-compatible, execute a tight seal, and remain contaminant-free.
- Mining: Used in piping systems that handle slurries and low to medium-grade abrasive media.
About Super Quali Cast: Our Background & Capabilities
- Decades of Experience: 40-plus years as investment casting manufacturers in India.
- Focused Manufacturing: Producing investment castings for diaphragm valves for pharmaceuticals, F&B, Chemicals, and other industries.
- Global Reach: Lost-wax casting supplier to businesses in multiple geographies across the globe.
- End-to-End Capabilities: Rapid prototyping, material availability, production, testing, and dispatch—all within the same premises.
Production Scale & Compliance: Compliant with PED, Merkblatt W0, IBR, and ISO directives and an annual production that exceeds 2,400 metric tons.
Discuss Your Diaphragm Valve Investment Casting Requirements
Zeroing in on the right pick for your diaphragm investment casting needs can be difficult. Our experts remain committed to streamlining your decision-making process with advisory support across design, technical, and material choices.
Frequently Asked Questions
Are diaphragm valves one-size-fits-all?
No, diaphragm valves are not a one-size-fits-all product. The inner elastic surface that acts as the stopper must be solvent and process-compatible. The wrong combination can result in extensive damage to the valve’s internal mechanism, leading to increased maintenance costs.
Is a weir-type diaphragm valve interchangeable with a full-bore type?
No, a weir-type and full-bore type diaphragm valve aren’t interchangeable. Weir-type diaphragm valves are used in processes that prioritise corrosion resistance, hygiene, and quick throttling. By comparison, full-bore type is preferred in systems that handle abrasive media. Weir-type valves have a raised saddle seat, and using it to handle abrasive media can cause damage to the internal walls as well as lead to product accumulation.
Do you produce valve bodies for both weir and full-bore types?
Yes, we produce valve bodies for both weir and full-bore. Our investment casting process is precision casting process produces accurate internal seats with accurate geometry while keeping the need for secondary operations to a minimum.
What is the minimum order quantity (MOQ) for diaphragm valve castings?
The MOQ for valve castings, including diaphragm valves, is influenced by design complexity, material choice, delivery location, and the degree of customization required. To get an exact number for your project, please reach out to us.
What materials are commonly used for diaphragm valve investment castings?
Diaphragm valve investment castings are commonly manufactured in stainless steel grades such as CF8 and CF8M, carbon steel grades such as WCB, and corrosion-resistant alloys including bronze and duplex stainless steel. Material selection depends on operating pressure, temperature, media compatibility, and industry requirements.
Why is investment casting preferred for diaphragm valve bodies?
Investment casting allows diaphragm valve bodies to be produced with complex geometries, smooth internal passages, tight tolerances, and excellent surface finishes. This reduces machining requirements and improves consistency across production batches.
